Watch and control your cottage from distance!

Whether you have or you don´t have the internet at the cottage.
For the owner of the cottage or rural objects we have smart solution. System iNELS RF Control can irrigates, ventilates, controls the temperature, but also protect the building against the uninvited guest. It is possible whether they have or do not have the internet at the cottage.

Intelligent wiring INELS remembers both of the solutions.

Without the Internet, with a GSM gateway…

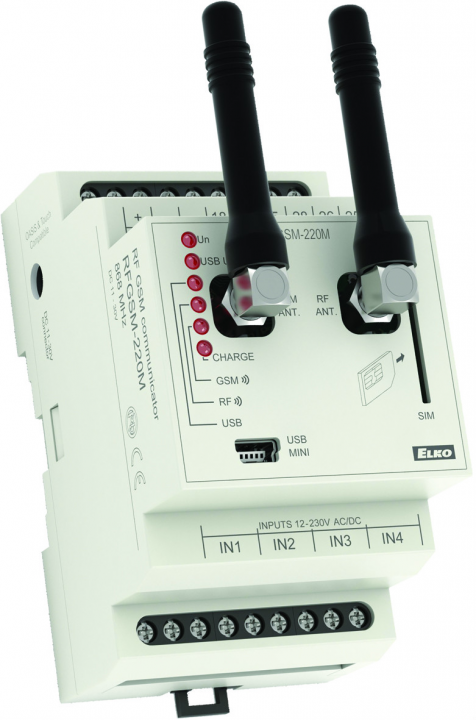

If the building is without the Internet, we can use the GSM gateway (RFGSM-220) of iNELS system RF Control, which is connected to the movement and window detectors (for example, JA-80 p, or JA-82 m). Thanks to this when an alarm is activated or deactivated you will be informed immediately by calls or text message. Through the text messages you can irrigate, ventilate, or control the temperature.

Technical specifications:

  • 3 module design intended to be mounted in the switchboard - a possibility to connect switching loads 2 x 8A (2x 2000W)
  • Li-Ion batteries for backup functionality for up to 30 minutes
  • Settings is done using software (Connect 1) - it is a part of GSM communicator (via a mini USB connector)
  • Range up to 150 m (open free space)
  • Communication frequency 868 MHz with two-ways protocol iNELS RF Control

More information here.

With the Internet and Smart box

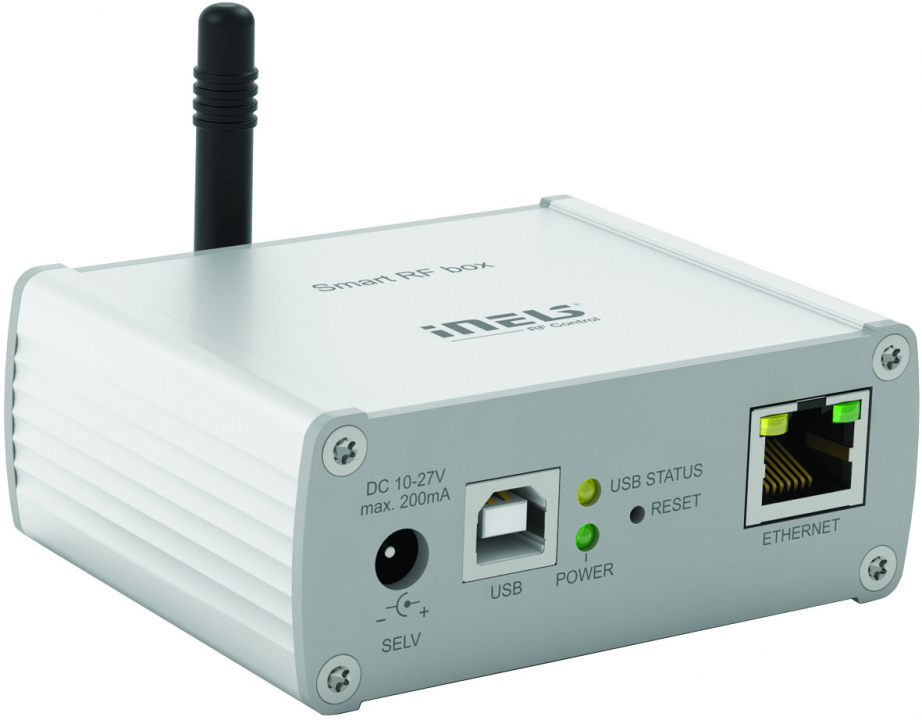

In case of the internet at the cottage is everything easier. The space is possible to equip with the Smart RF box (eLAN-RF-003) of iNELS system RF Control that is connected with your mobile phone or tablet. On the display after that you can anytime by one touch control and monitor ventilation, opening and closing of the windows, input of the electricity, irrigation, pump, heating system, energy consumption, control the Interior and outdoor cameras or simulate the present.

Technical specifications:

  • It sends and receives commands from up to 40 units, processes programs for automatic control (the installation can be gradually extended from 1 unit of iNELS RF Control)
  • Thanks to the two-way communication, it visualizes the current status of individual units/actuators
  • Supply through adapter 10-27V DC (included in the package) or through PoE power supply (router) 24V DC
  • You can contol the settings in two ways: through the Web interface or directly in the iHC-MARF App (Android) / iHC-MIRF App (iPhone)
  • Range up to 100 m (in the open air), in case of an insufficient signal between Smart RF box and unit please use the signal repeater - RFRP-20
  • Communication frequency 868 MHz with bidirectional protocol of iNELS RF Control

More information here.

When the cottage is without the internet there is a solution too. The operator can the cottage equipped via regular SIM card that you use on your phone. It then sends the data to the application of iNELS Home Control and you have immediately an overview about turn on or off the appliances or you check the cameras. Although you pay less than for the price of SMS.

Are you interested in our solution and do you have any questions? Please feel free to contact us on the phone line: + 420 800 100 671 or email: podpora@elkoep.com
