Welcome to the city….
The Smart City!
Smart Pole is a comprehensive solution with an intuitive,
easy-to-use user-friendly solution. The solution that makes
the city's inhabitants feels safer.
Benefits
-
High flexibility
The smart pole communicates with the control unit, sends data and instantly adjusts its operation given the ambient conditions.
-
Design flexibility
Choose from four variations of the Smart Pole, each with just the elements you need now. You can add more at any time in the future.
-
Significant savings
Using up-to-date LED lights and intelligently adjusting light intensity can save up to a third of operating costs per year.
-
Easy installation
Upgrade your existing lighting to smart is not difficult at all. Depending on the extent of the changes, in a matter of days.
-
Greener energy
By noticeably reducing the energy consumed for lighting, we help nature and the environment considerably.
-
High durability
Sturdy construction that resists both low and high temperatures, other weathering and potential vandals.

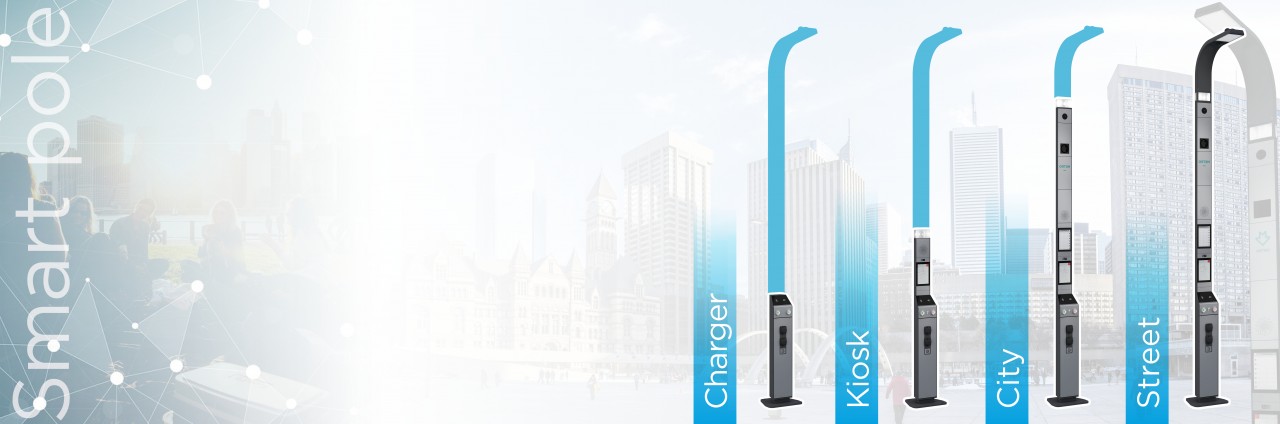

Poles grow together
The bigger your ideas are, the more powerful the Pole becomes and the more it serves. Each Pole is individual, just like you.
The feeling that you are
taken care of
This is what led us to create a unique Smart Pole.
A comprehensive solution with intuitive user control.
Charge quickly and easily
Charger as the basic structure of the Pole is the solution for all cities that want to join the electric motoring period. You can charge with it not only electric car or bike, but also a laptop or a mobile.
Information as in the palm
of your hand
Kiosk is a Pole for all. For those who love to spend time outdoors. It will provide you with information both in spoken and electronic form and will charge your phone and computer comfortably.

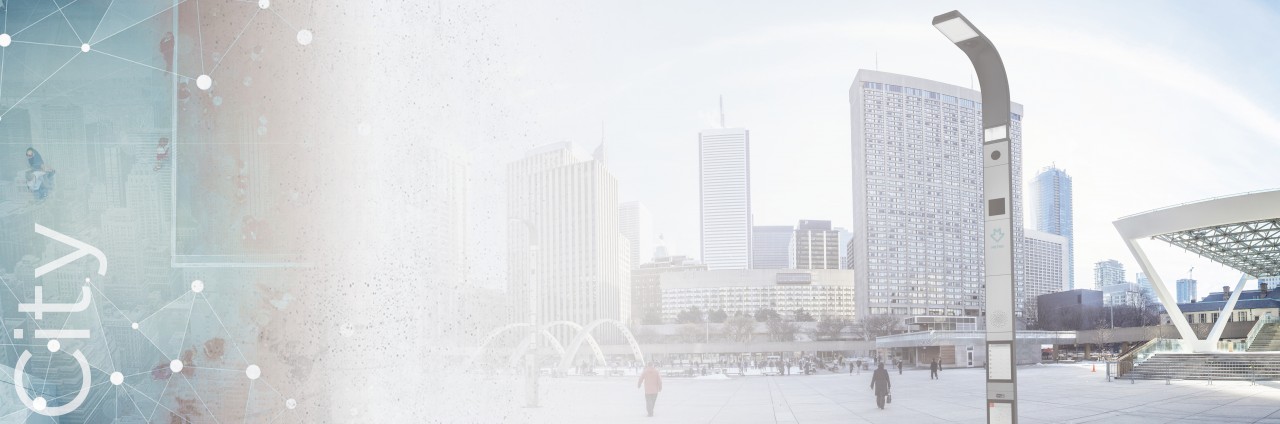

Not only will it make you
feel at home
City Pole makes you feel safe. Meets the requirements of all who want to give their citizens a wide range of information.

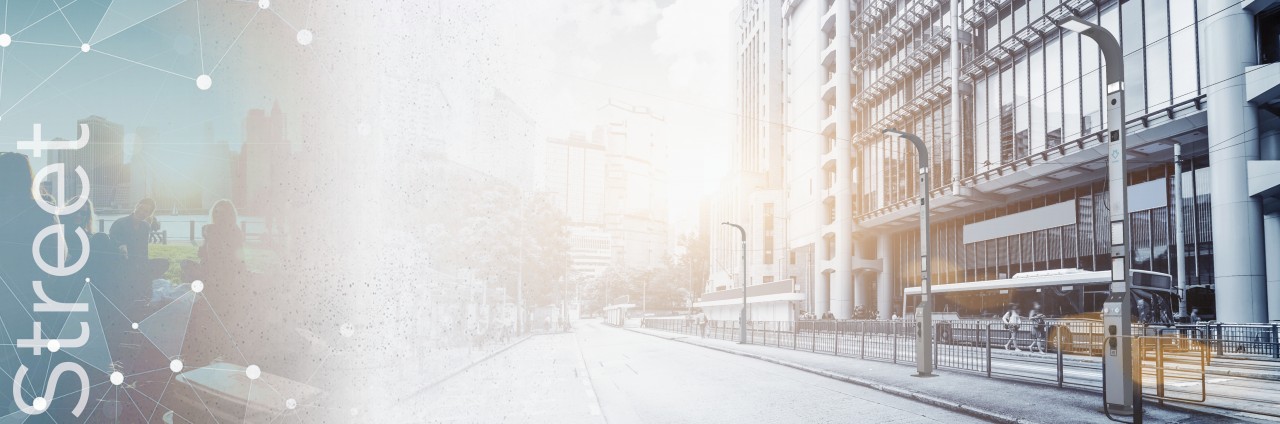

Not only a Smart street lighting
More than 5 in 1. Street Pole provides full service, so important for a good quality life of the residents.

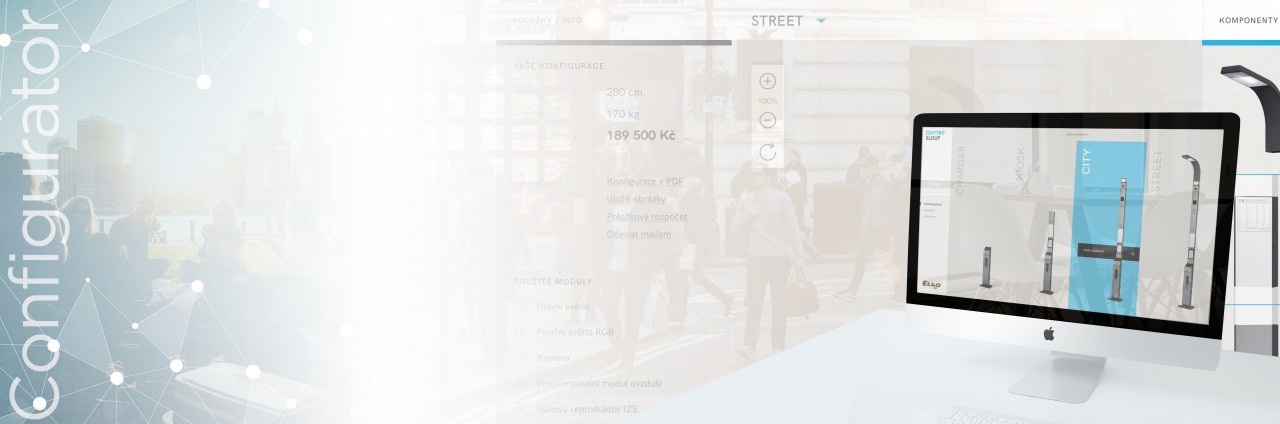

Every city is different
Smart Pole can also be exactly that. You can choose what exactly you expect from the Pole thanks to the configurator. It's that simple.
Want to learn more?
Browse through our Smart Lighting catalogue for all your information.

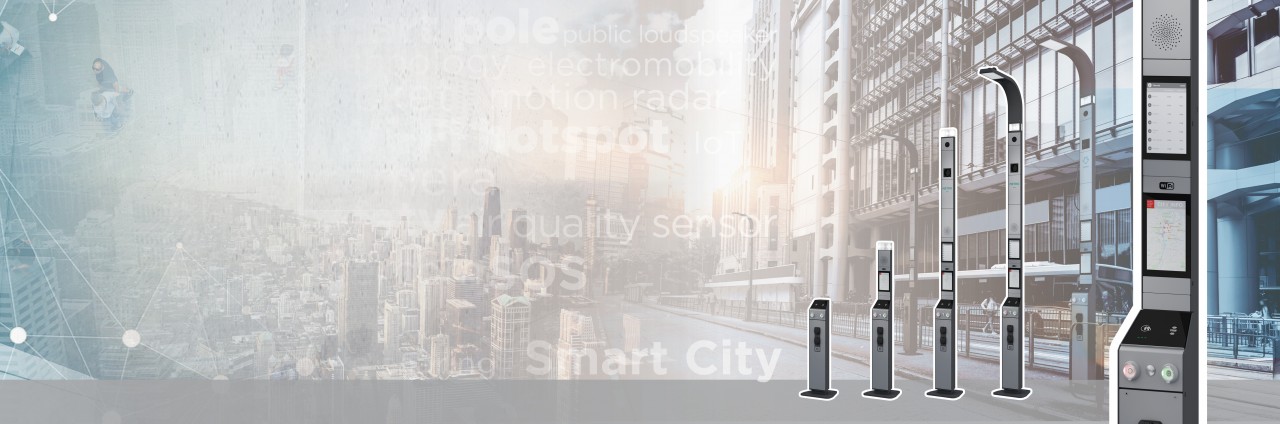

Smart Pole as a basic pillar of the Smart City
All the variants of the Pole and where to find everything you need? Browse through the brochure to answer all your questions about the city theme and Smart Poles.

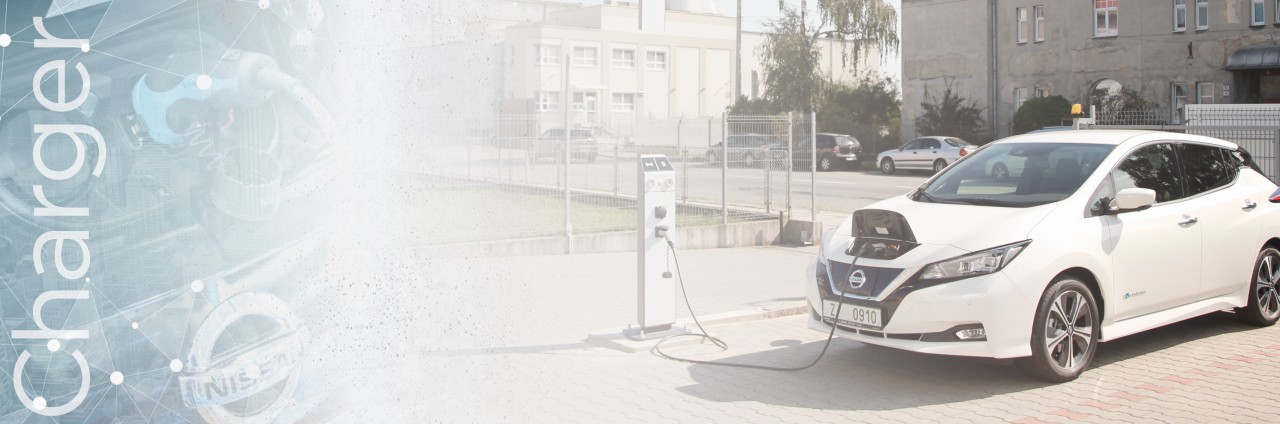

Charging made quick and easy
Charging station for all battery devices – it can be a portable device or vehicle. You can recharge both wirelessly and via a USB socket, fitted with a 230V or 22kW socket for AC charging electric vehicles.

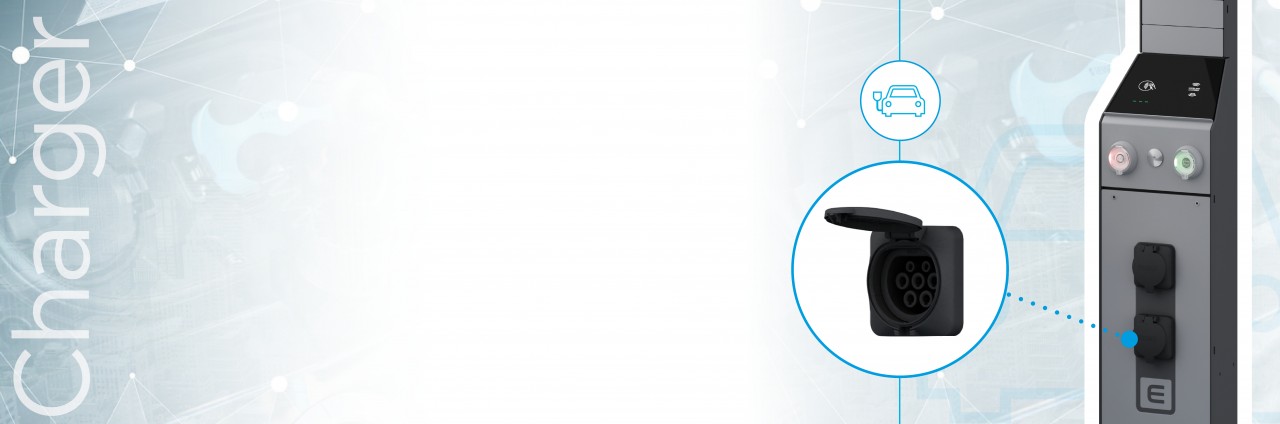

Electric vehicle charge socket
EU Type 2 / Mode 3 standard socket for AC charging electric cars up to 22 kW / 32A.

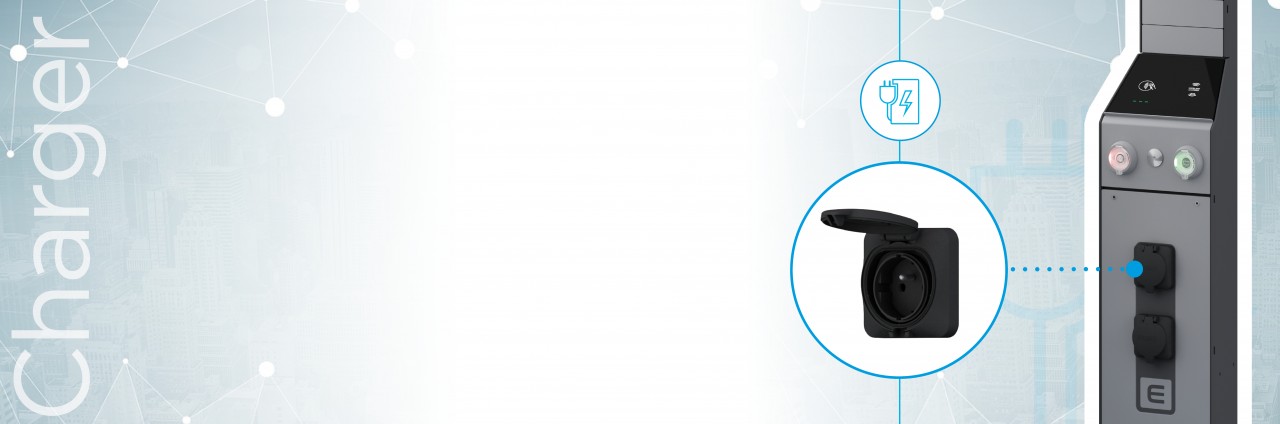

Charging socket 230V
Controlled socket 230V / 5A with IP54 protection for connection of any charger of corresponding power
(max. 1 kW). Adjustable overcurrent
protection (0.8 - 8 A).

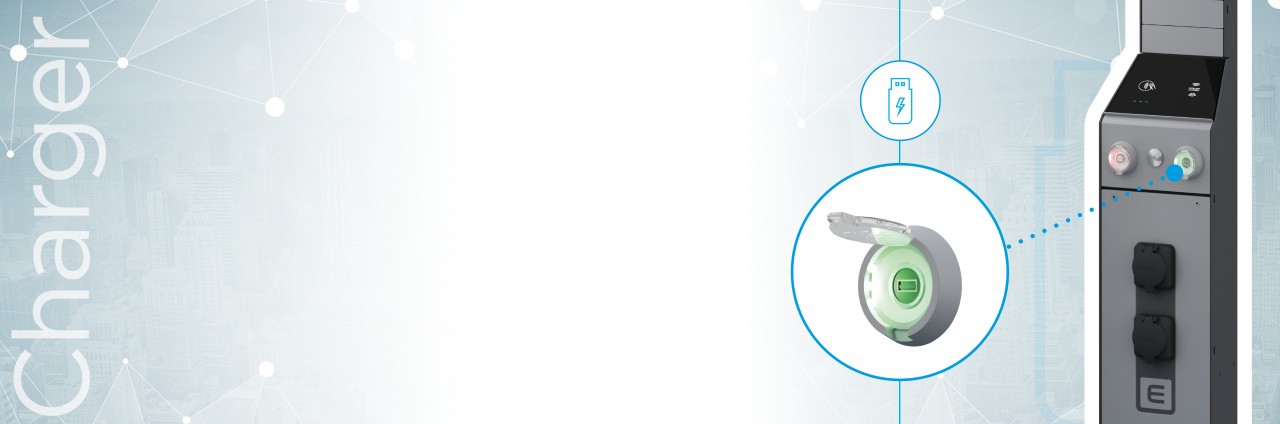

USB charge socket
The 5V / 2A USB socket enables quick charging of all devices via cable. Green LED backlight and anti-vandal design with IP65 protection.

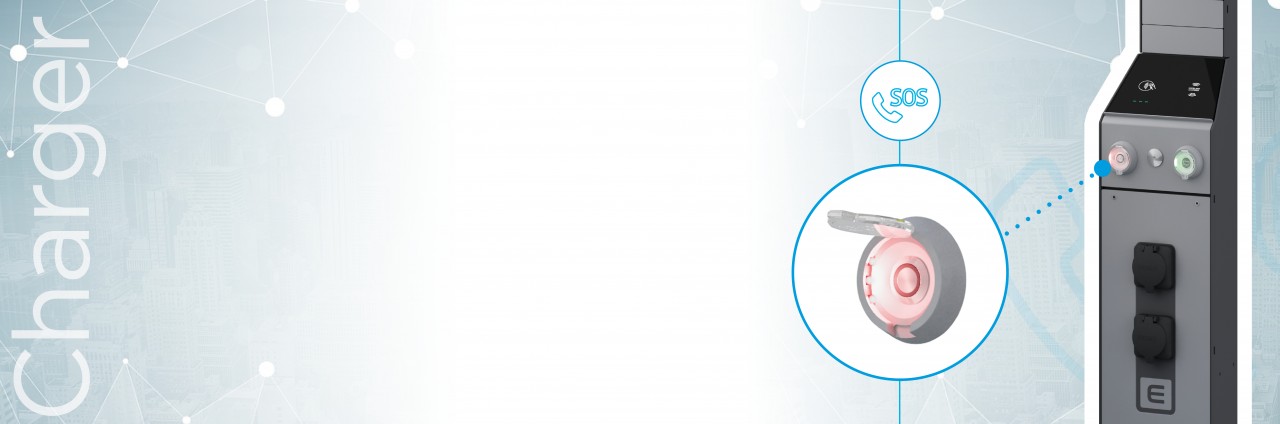

SOS button
In addition, the backlit button in the anti-vandal design is equipped with a protective cap. It is possible to set „where it will ring“. It can also include a two-way communication system - in the Kiosk variant.

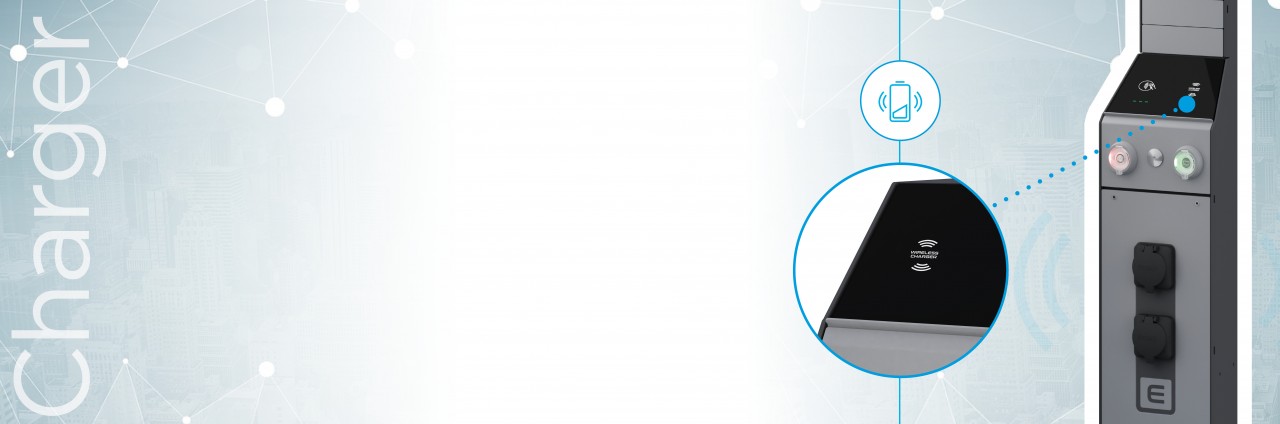

Wireless Phone Charger
Wireless recharging of Qi phones with output
power up to 5 W.

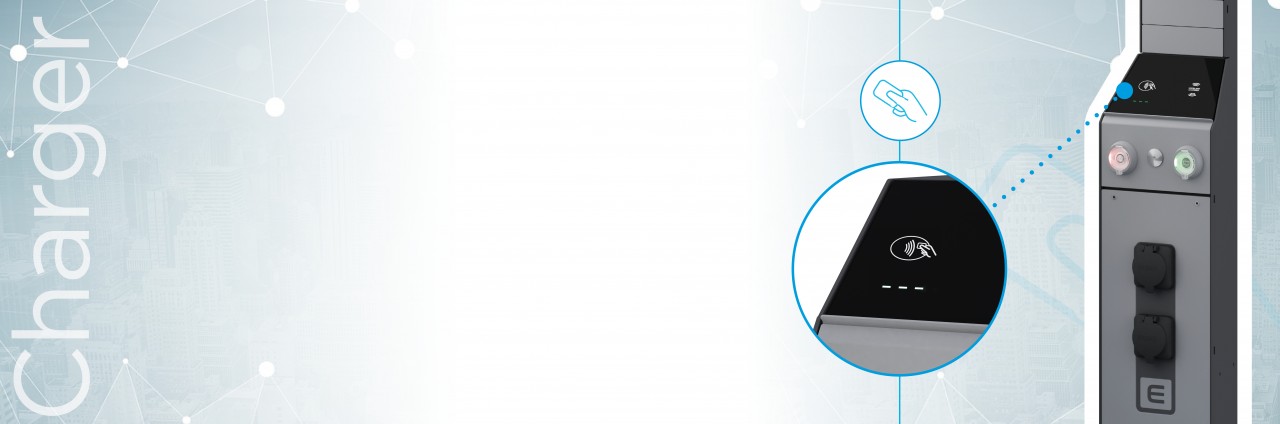

Contactless card reader
MIFARE (Classic, Ultralight C, Plus, Desfire, SmartMX), EMV (PayPass, PayWave). NFC, RFID chips.

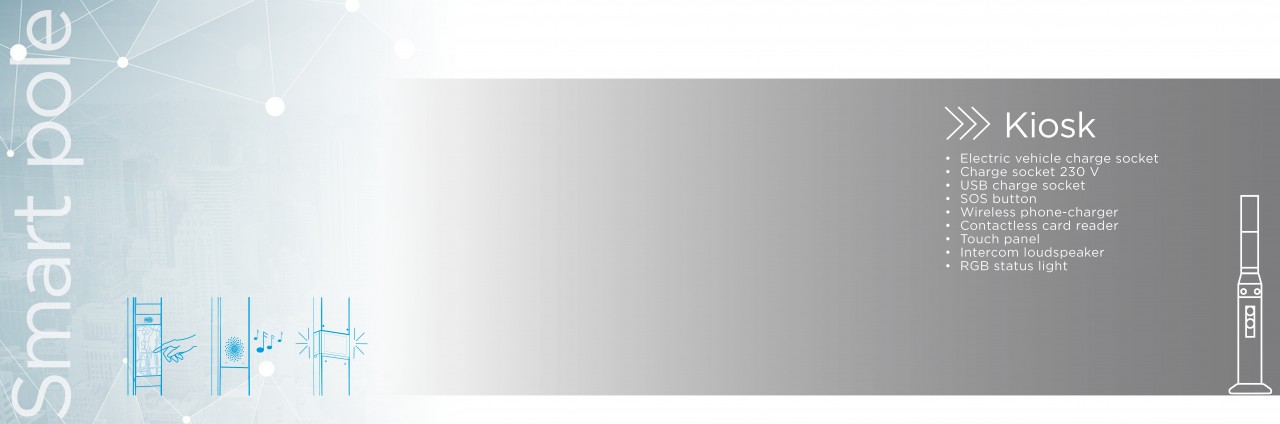

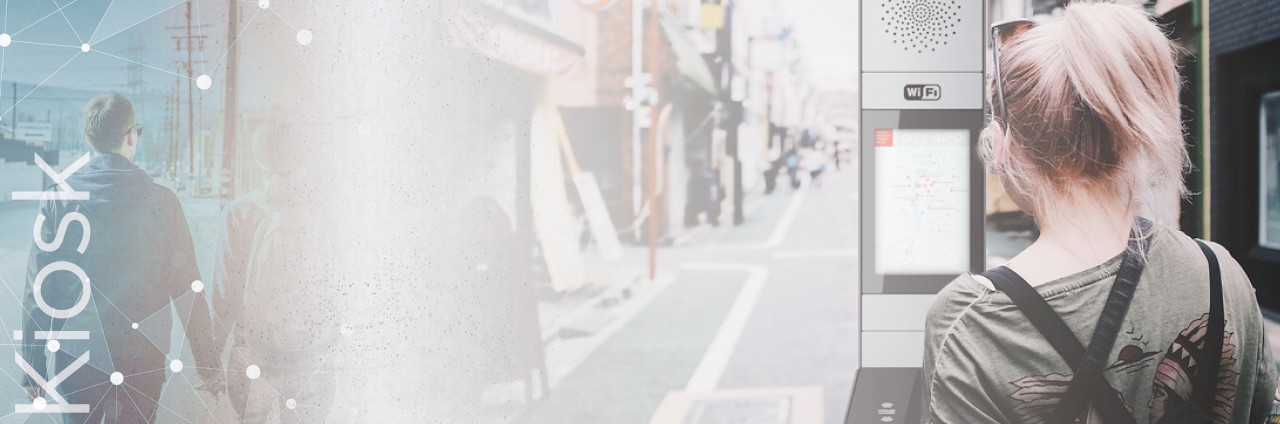

Informations on a palm
of your hand
The Kiosk serves as an information portal for parks, campuses or other public spacesThis panel can be used to display important phone numbers, city maps, restaurants and other places of interest as needed.

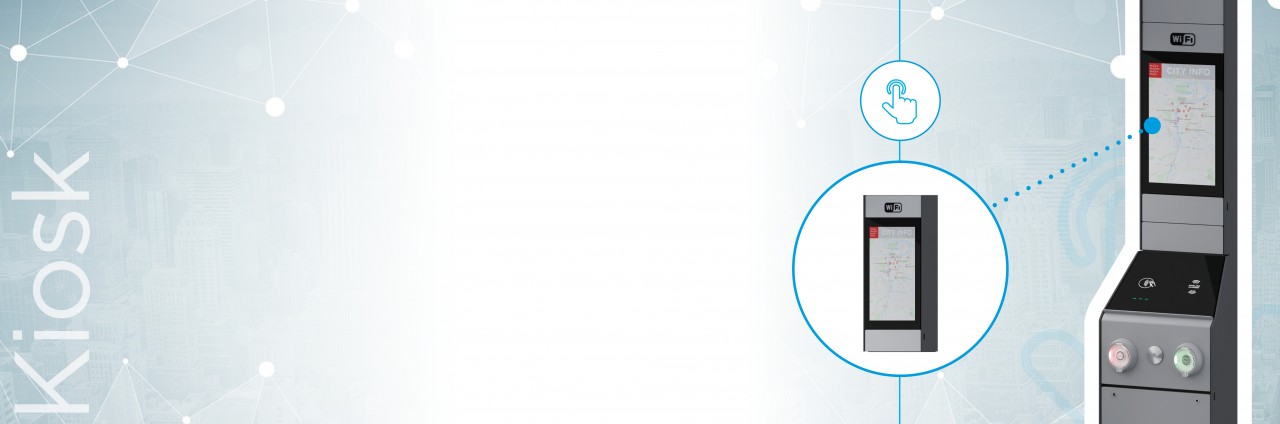

Touch panel
It offers a variety of applications through optional applications: maps, navigation, information, guides,
and advertising.

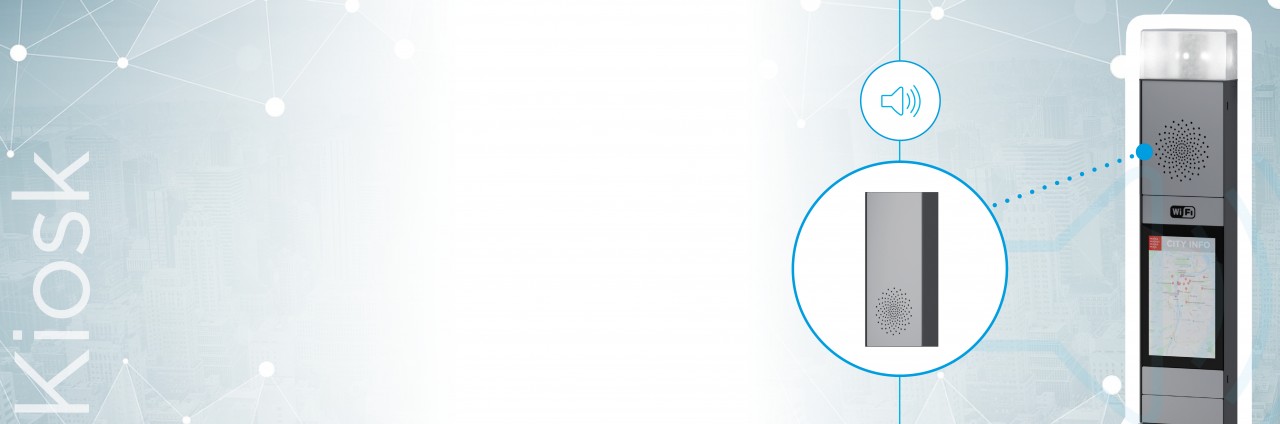

Intercom loudspeaker
The two-way communication system is used for voice communication with the operator, whether for information or in case of danger.

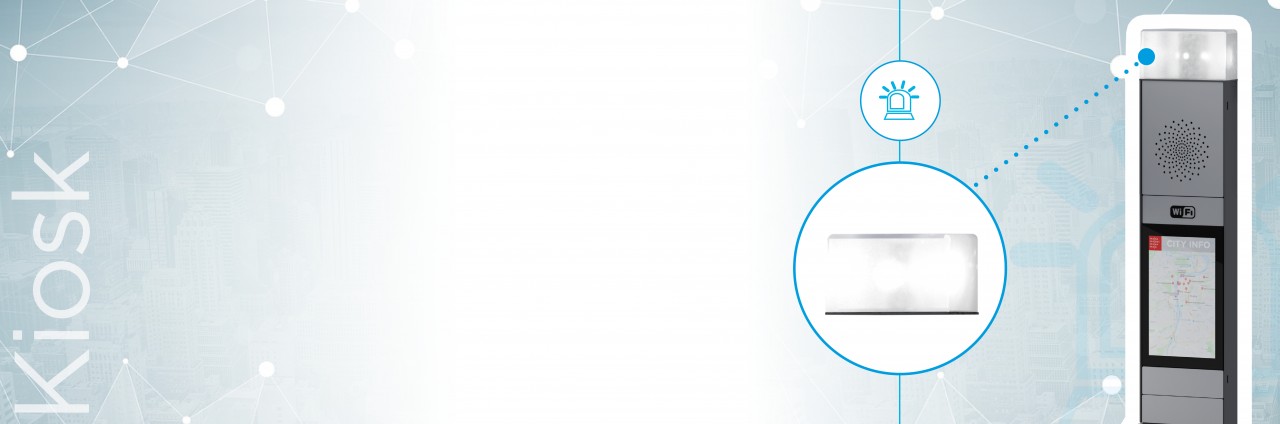

RGB status light
By varying colours, it can signal the various states associated with the column functions and thus supply simple information to the surrounding area (e.g., free recharging slots, electric vehicle charge status, or fault condition).

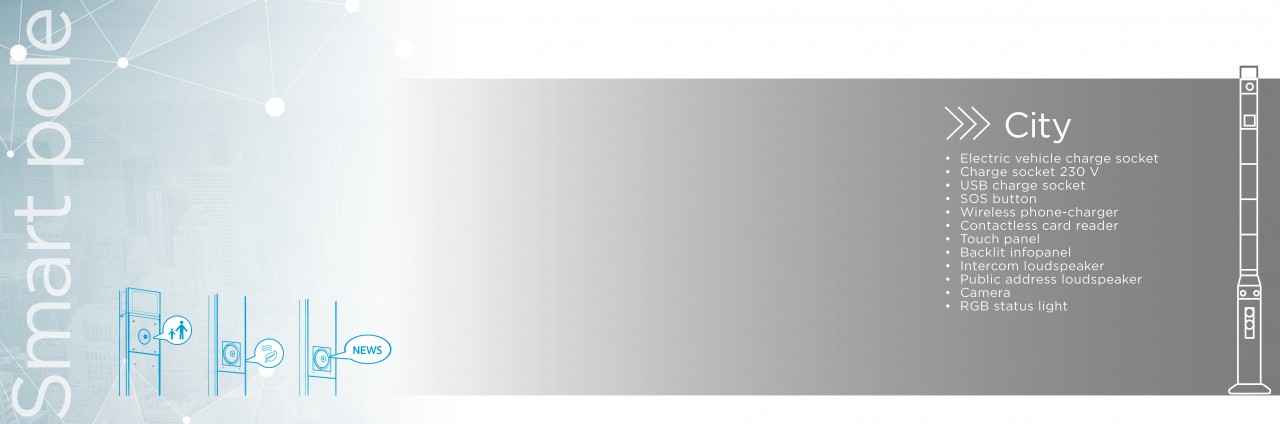

Proud guardian of your city square
The design fits into the concept of a modern square, park or pedestrian zone. Residents or tourists can find the information they need, quickly recharge their phone (even wirelessly), the camera and other devices or contact the dispatching centre.

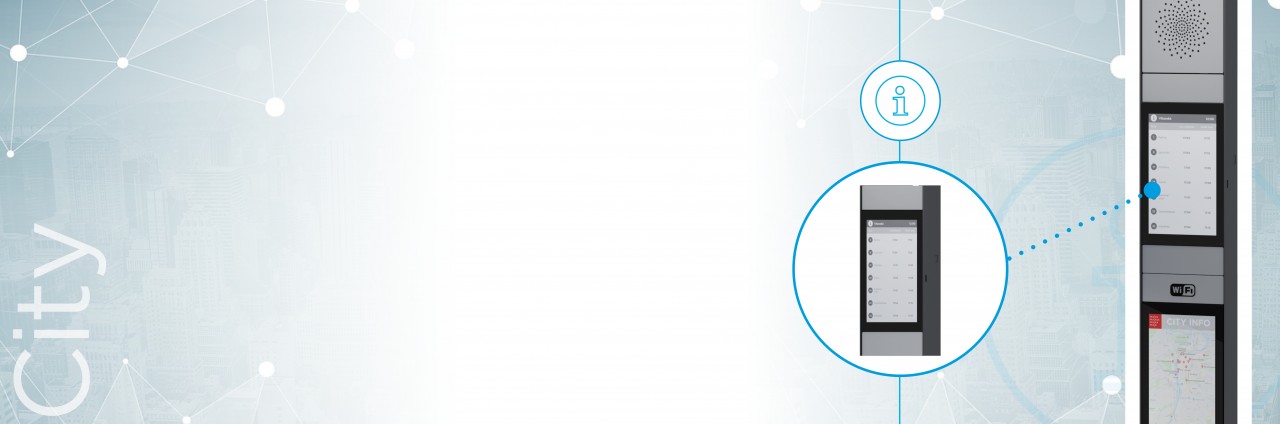

Backlit infopanel
A place to display information that changes frequently: timetables, lockout information, or can be used to serve ads.

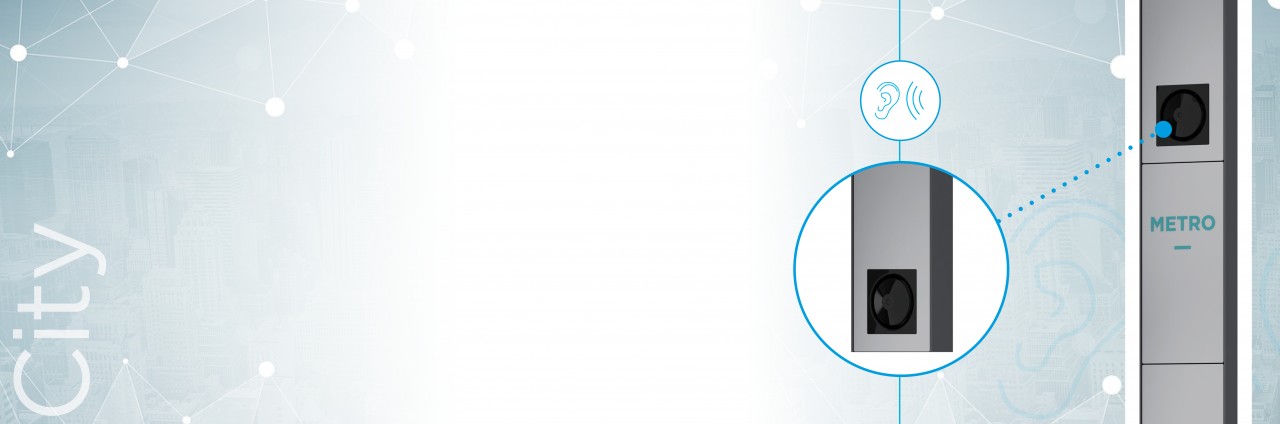

Public address loudspeaker
It is a substitute for public radio and its performance covers the desired area perfectly. Each Pole can be assigned and addressed separately to provide territorial reporting.

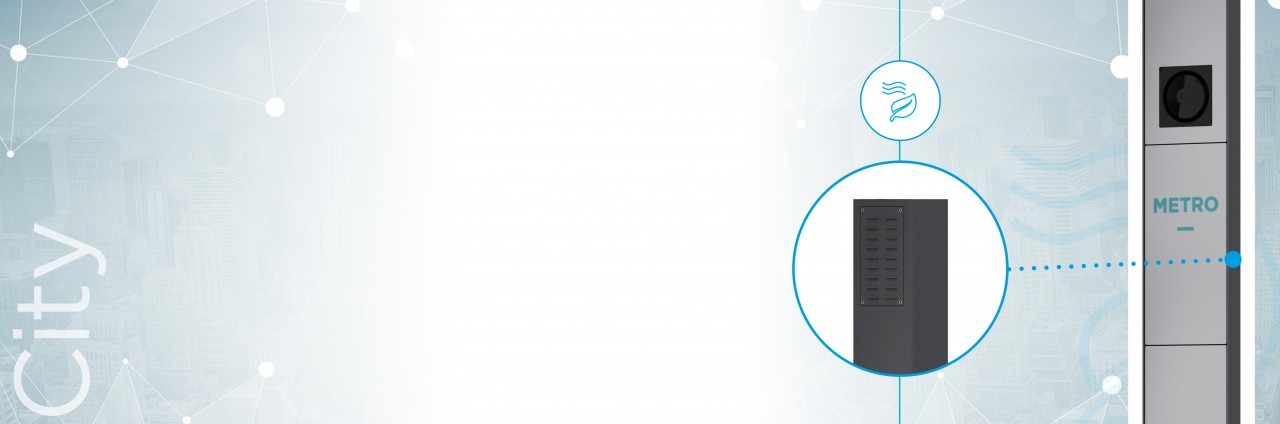

Air quality sensor
The sensor measures both harmful substances in the air and meteorological variables. Values can be displayed on the information panel screen, but can also be notified to the city system.

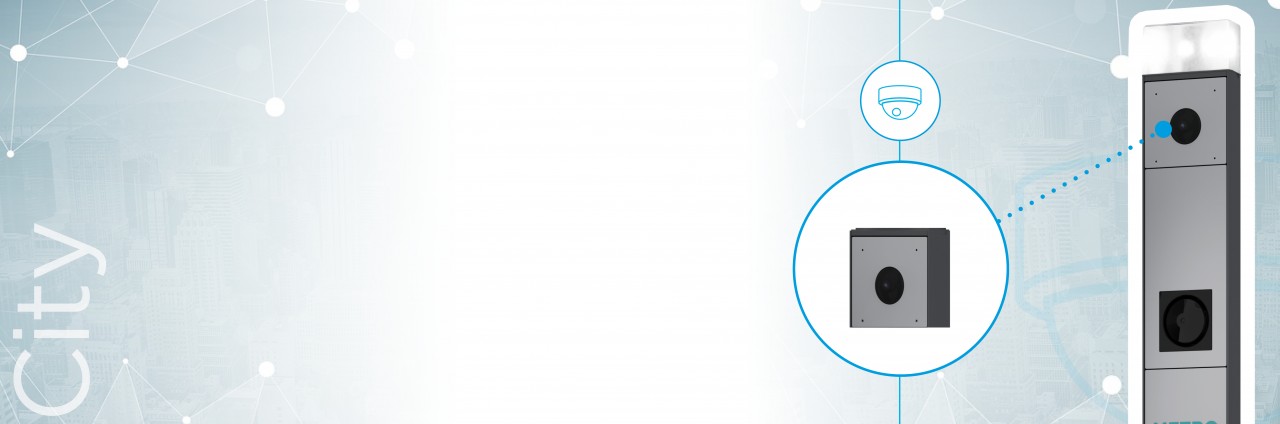

Camera
A 5-megapixel camera with a 180-degree viewing angle provides a perfect picture of what is happening around the column and underneath it. All this even with reduced visibility.

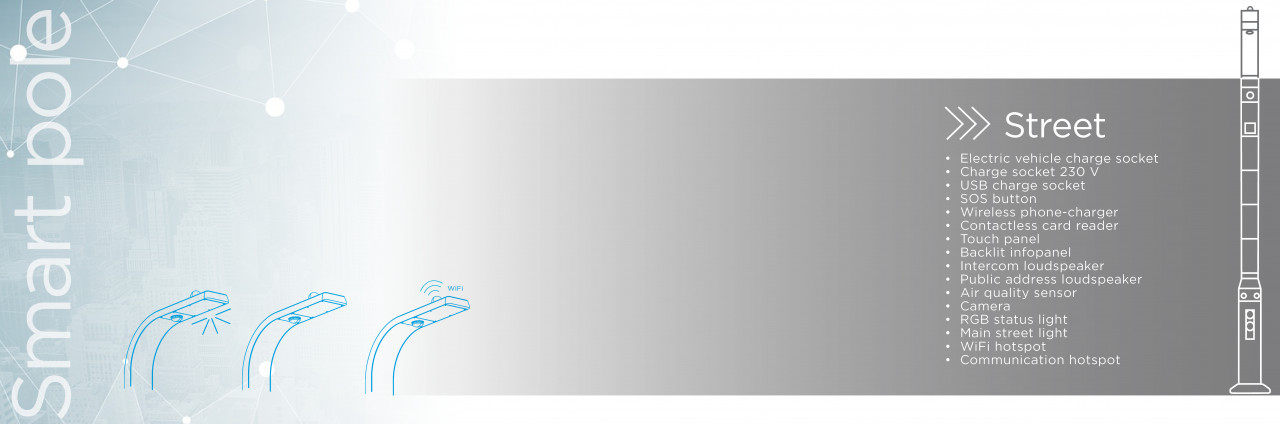

More than a smart street lighting
The full-featured Smart Pole. A luminaire for purpose-built road lighting. Which regulates its brightness through proximity sensors and pre-set scenarios, resulting in significant savings.

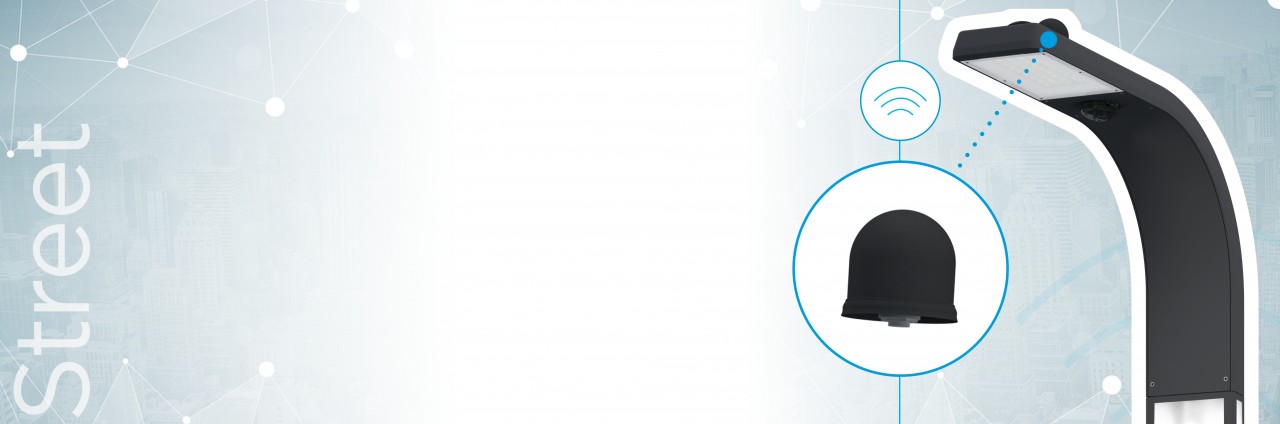

WiFi hotspot
It is used for WiFi signal coverage in the 250 m band in the 2.4 GHz band (802.11 b / g / n) and 5 GHz
(802.11 a / n standard). Max. the output power is 22 dBm and operates at a transmission rate of up to 150 Mbps.

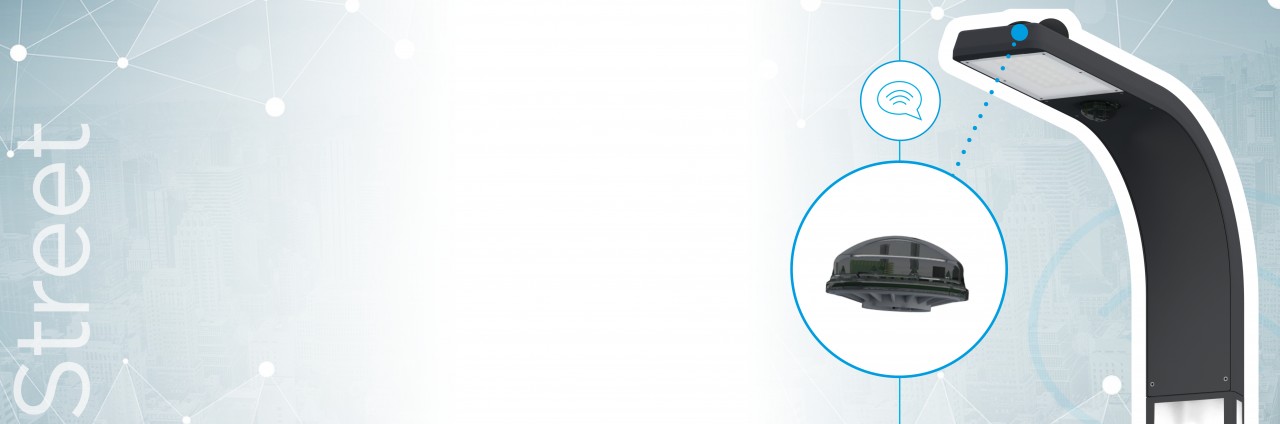

Communication hotspot
It is used for connection to the IoT network
(LoRA, NB-IoT) for information transfer and Pole control (see the table „Communication“). Cap design with Lumawise cap.

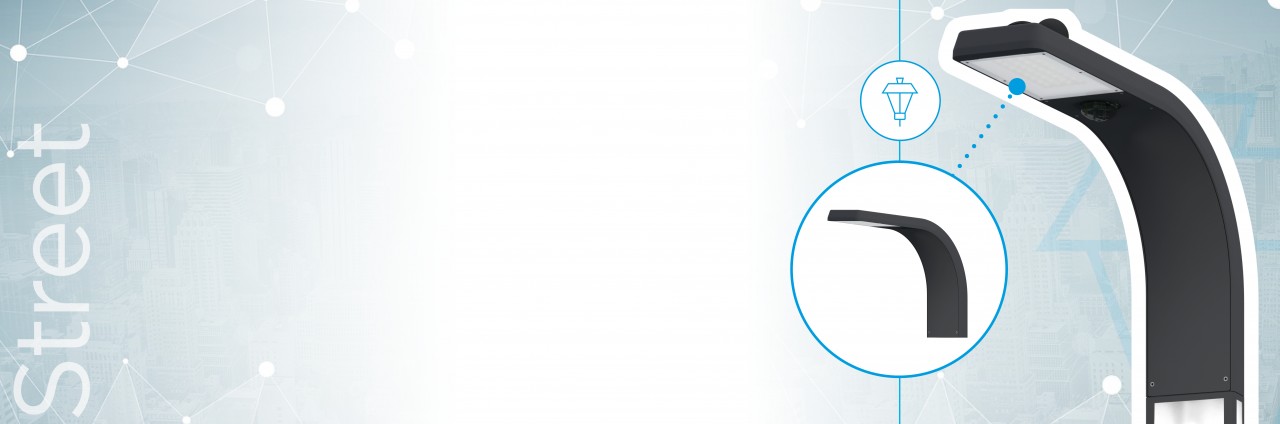

Main street light
The headlight body features a 100W LED module and an optional 3000K / 4000K / 5000K color temperature. The driver provides smooth 0-100% brightness control.
