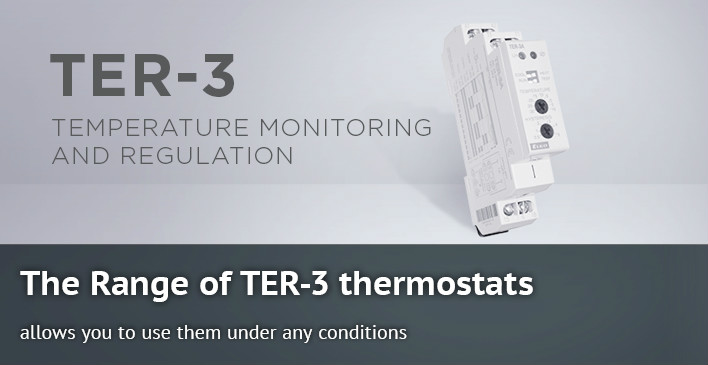

The Range of TER-3 thermostats allows you to use them under any conditions
- TER-3A - Thawing gutters, driveways, keeping the temperature in cooling systems (freezer)
- TER-3B - monitoring the critical temperature of the room (kitchen, bathroom, kennel, greenhouse, ...) and the subsequent switching of ventilation
- TER-3C - regulation and monitoring temperature heating systems, heat exchangers, machines, engines and equipment
- TER-3D/G – regulation of halls, gyms and other public spaces, but also for hot water and fluids
- TER-3H - Temperature monitoring anti-icing pipeline (sewage, drinking water, freezer guidance ...)
- TER-3E - simple thermostat with a fixed hysteresis for monitoring the temperature of liquids in tanks, vats, sumps
- TER-3F – an internal sensor is part of the device, because it can be used for temperature monitoring in the control cabinet, server room ...
Technical benefits and facilitating Installation for you:
- AC/DC in the range 24-240V eliminates the purchase of additional power sources
- Adjustable hysteresis 0.5 - 5C will positively affect the efficiency of switching the heat source
- Changing the Heating / cooling, by simply switching mode (summer / winter) DIP switch
- Temperature range -30˚C + 70C in 8 types of thermostats
- 16A AgSnO contact means without the use of a contactor or auxiliary relay
- Ability to management temperature sensors at up to 50m distance
- Monitoring of disconnection / short circuit gives you early warning of emergency situations
- The method of measurement NTC / PT 100
